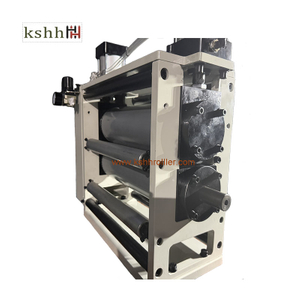

Steel-Steel Unit Male&Femal Stainless Steel Foil Embossing Roller

Availability:
Quantity:

Male&Femal Embossing Rollers/Frame

1.Raw materials#20, #45 and forge alloy steel 42GrMo38GrMoAI (for glass embossing is different)
2.Surface treatment: hard chrome plate coating, the hardness is HV900(normally HV500-600).

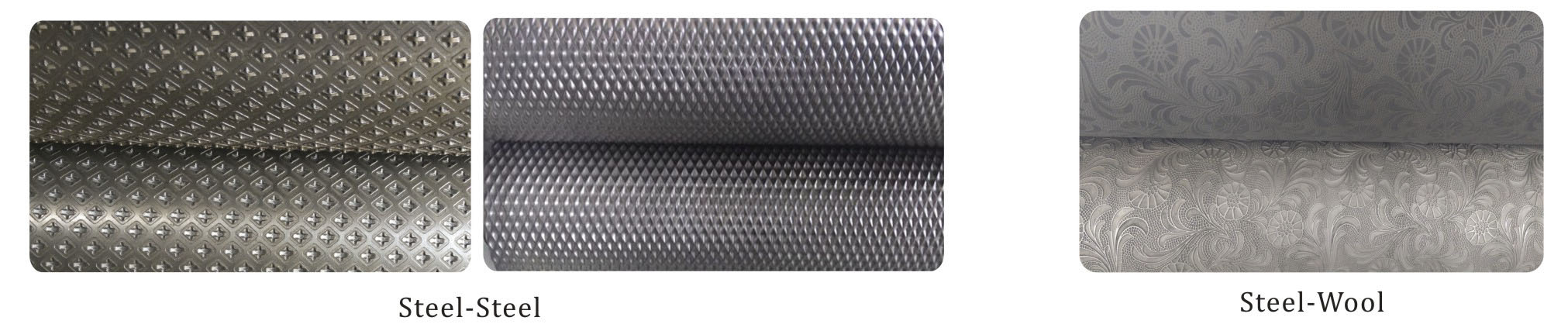

Frame-1

Specification and parameter:
Max. Diameter: Φ 1000mm,
Max length: 6000m;
Chrome plating thickness: 0.03-0.12mm
TIR: ≤ 0, 01mm;
Concentricity: ≤ 0, 01mm
Surface treatment:  Sand finish, spray finish, chemical corrosion finish, engraving, laser curving, cutter curving...
Raw material: Seamless steel pipe, integrated forging 45# steel; 20# steel; 42CrMoA steel aloy, etc.
Shaft material: 45 steel, integrate forging;
Cooling water: Big screw pitch, multi flow or cross twin flow;

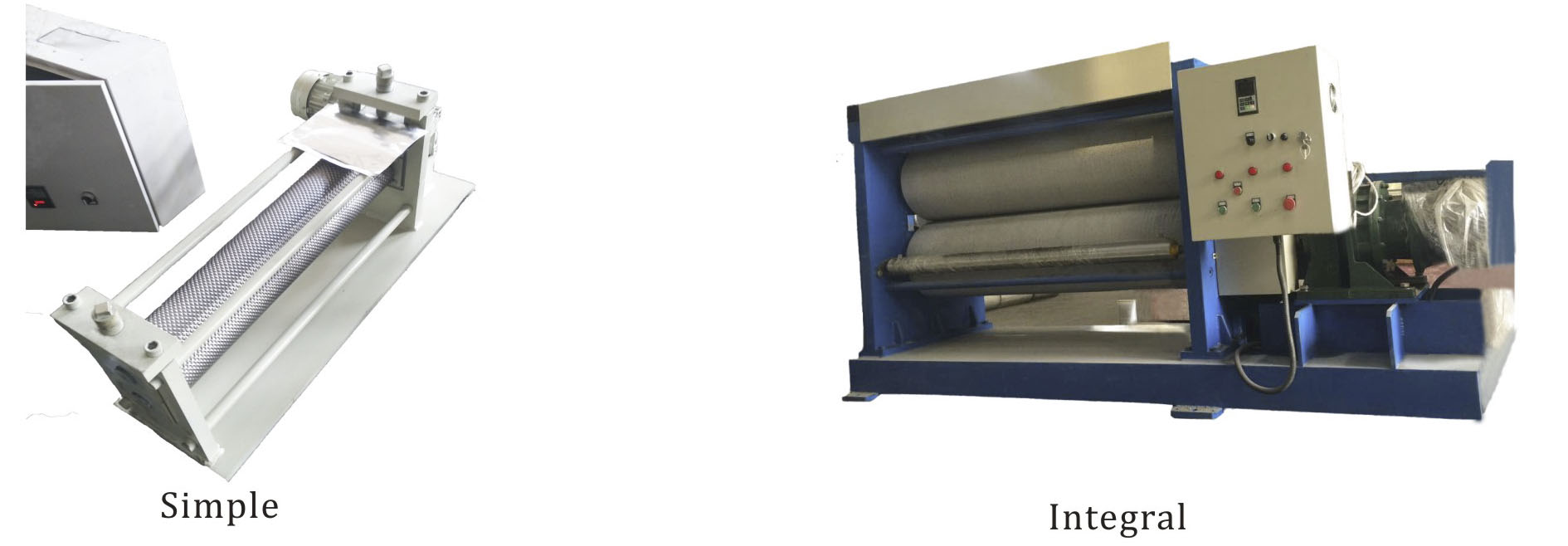

The embossing unit have two kind frame,one is simple frame and other is intergal.

Frame-2

Company Profiles:
Kunshan hanhan set up in 2008,international business start since 2010.now have exported to more than 40 countries.Hanhan Co.,Ltd is one of the specialized manufacturer for plate making over 15 years.We always adhering to the management philosophy-"Honest and Integrity" as well as the spirit of pursuing being outstanding, and has been affirmed by clients for good quality and reputation.
