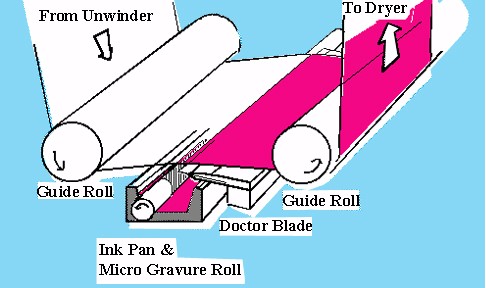

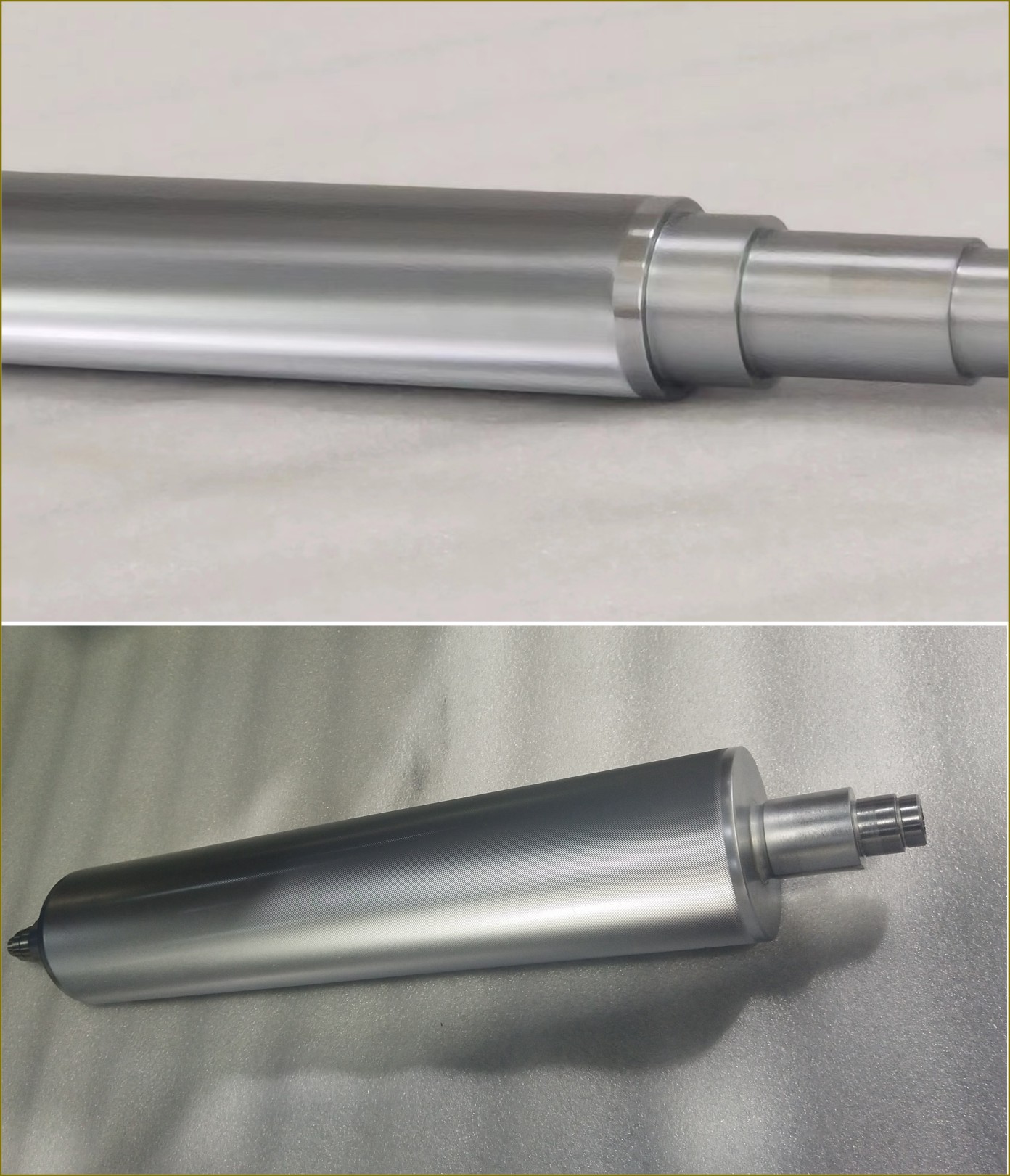

What's Micro Gravure Roll?
Micro gravure roll is a reverse, kiss gravure coating method, usually the angle is 45°or 65°, with smooth and even coating, and high tranfer rate for coating. Widely used in the field of electronics, medicine, optics, battery etc.

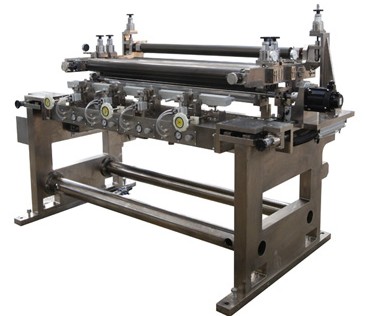

Micro gravure coating unit-High Precision Coating machine:
Parameters:
Diameter:20-60mm
Length: 50-3200mm
Angle:0-85°
Precision: TIR≤0.003mm
Concentricity: ≤0.1mm
Key Features and Specifications:
1. Versatile Application: Widely used in electronics, optical films, LCD components, imaging, and protective films, our Micro Gravure Roll caters to a variety of high-tech industries.
2. Precision Coating: The reverse, kiss gravure coating method guarantees precise and uniform coatings, essential for demanding applications in these industries.
3. Optimal Angles: The roll is available with angles set at either 45° or 65°, allowing you to choose the configuration that suits your specific coating needs.
4. Dimensional Flexibility: Choose from diameters ranging between 40mm to 80mm and lengths spanning from 100mm to 3200mm, providing flexibility to meet your project requirements.
Ceramic coated Micro gravure roll can also be supplied!
Note: Above parameters only for reference, if different, pls contact us for confirmation, thanks!
